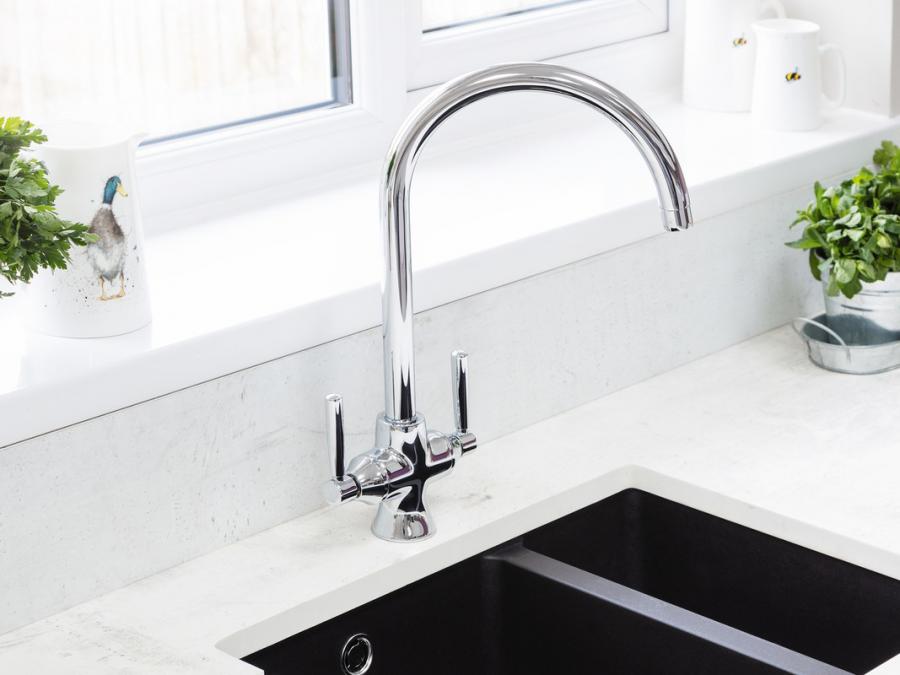

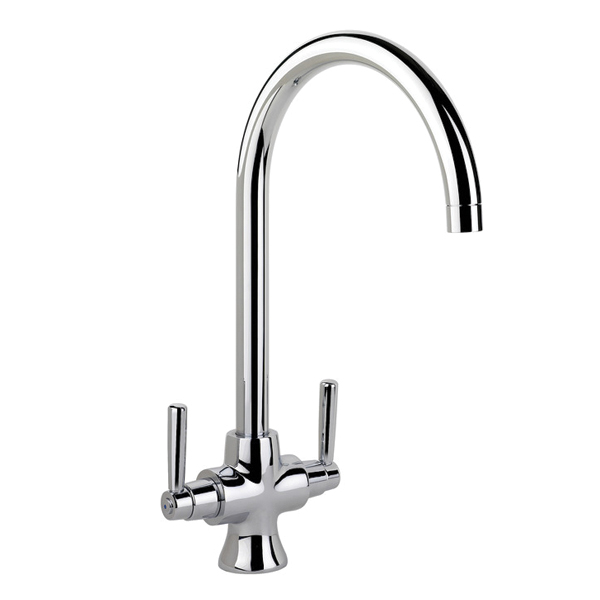

Cruciform Dual Lever Monobloc Tap

Description

Min pressure 0.3 bar

Suitable for all pressure water systems
Featuring an anti-splash spout with honeycomb aerator design which mixes air with water to emit a water flow with no splash

Key Features
Ceramic Disc Cartridge: Yes
Quarter Turn Handles: Yes
Flexible Inlet Pipes: Yes
Honeycomb Aerator: Yes

Technical Specifications

Material Type: Brass
Minimum Pressure (Bar): 0.3
Maximum Pressure (Bar): 5.5
Recommended Water Temperature: 46°C
Maximum Water Temperature: 70°C
Mixed Flow Rate, 3 Bar Pressure (litres/min): 18.40
Flow Type: Dual_Flow
Overall Height (mm): 392
Spout Exit Height (mm): 265
Spout Exit Length (mm): 216
Spout Diameter (mm): 24
Spout Rotation Range: 360°
Base Diameter (mm): 51
Centre Distance (mm): –
Recommended Fixing Hole Diameter: 35
Handle Control: Quarter Turn
Cartridge Type: Ceramic Disc Cartridge
Aerator Type: Honeycomb Aerator
Inlet Pipes Included: 1/2″ Stainless Flexible Hoses
