Description
Minimum pressure: 0.2 bar

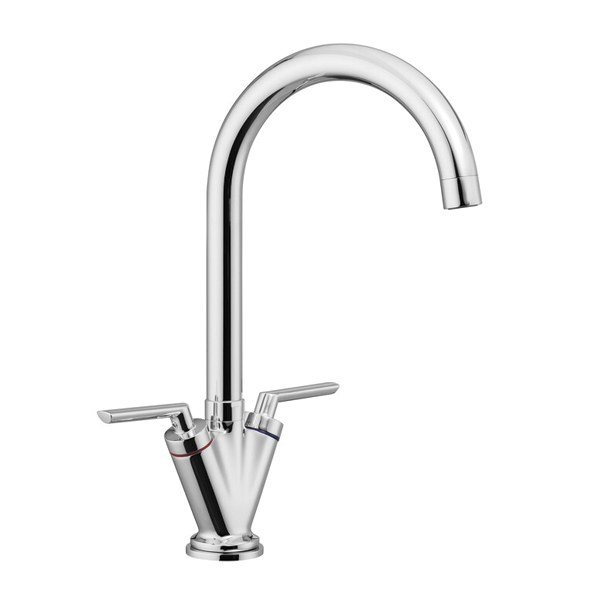

- Dual lever handle design
- Featuring an anti-splash spout with a honeycomb aerator design which mixes air with water to emit a water flow with no splash
- Suitable for all pressure water systems
- Single flow spout
- WRAS approved
Key Features
Ceramic Disc Cartridge: Yes
Quarter Turn Handles: Yes
Flexible Inlet Pipes: Yes
Honeycomb Aerator: Yes
Technical Specifications
Material Type: Brass
Minimum Pressure (Bar): 0.2
Maximum Pressure (Bar): 6.5
Recommended Water Temperature: 38°C
Maximum Water Temperature: 70°C
Mixed Flow Rate, 3 Bar Pressure (litres/min): 20.3
Flow Type: Single flow
Overall Height (mm): 330
Spout Exit Height (mm): 233
Spout Exit Length (mm): 208
Spout Diameter (mm): 22
Spout Rotation Range: 360°
Base Diameter (mm): 46
Centre Distance (mm): –
Recommended Fixing Hole Diameter: 35
Handle Control: Quarter Turn
Cartridge Type : Ceramic Disc Cartridge
Aerator Type: Honeycomb Aerator
Inlet Pipes Included: Stainless Flexible Hoses
