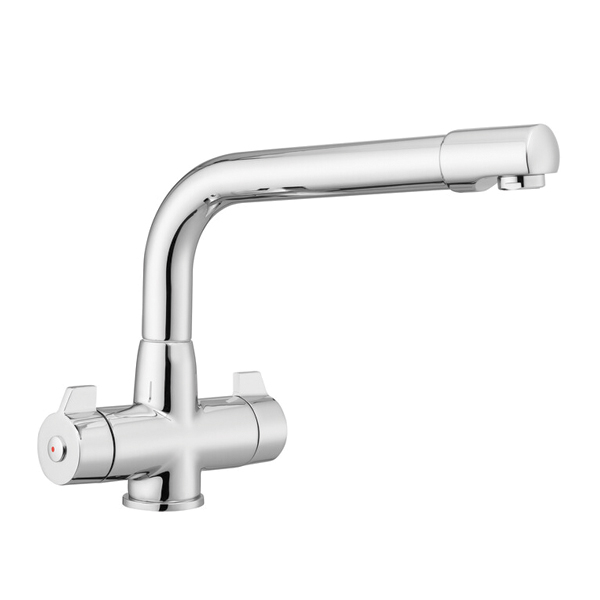

Aquadrift Dual Lever Monobloc Tap Chrome

Description

Minimum pressure: 0.2 bar

• Dual lever handle design
• Featuring an anti-splash spout with a honeycomb aerator design which mixes air with water to emit a water flow with no splash
• Suitable for all pressure water systems
• Single flow spout
• WRAS approved

Key Features

Ceramic Disc Cartridge: Yes
Quarter Turn Handles: Yes
Flexible Inlet Pipes: Yes
Honeycomb Aerator: Yes

Technical Specifications

Material Type: Brass
Minimum Pressure (Bar): 0.2
Maximum Pressure (Bar) : 6.5
Recommended Water Temperature: 38°C
Maximum Water Temperature: 70°C
Mixed Flow Rate, 3 Bar Pressure (litres/min): 15.4
Flow Type: Single flow
Overall Height (mm): 373
Spout Exit Height (mm): 245
Spout Exit Length (mm): 245
Spout Diameter (mm): 22
Spout Rotation Range: 360°
Base Diameter (mm): 52
Centre Distance (mm): –
Recommended Fixing Hole Diameter: 35
Handle Control: Half Turn
Cartridge Type: Ceramic Disc Cartridge
Aerator Type: Honeycomb Aerator
Inlet Pipes Included
Stainless Flexible Hoses
