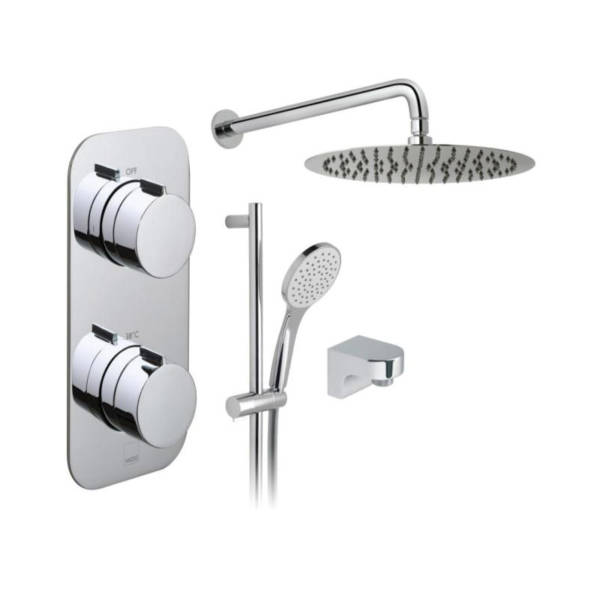

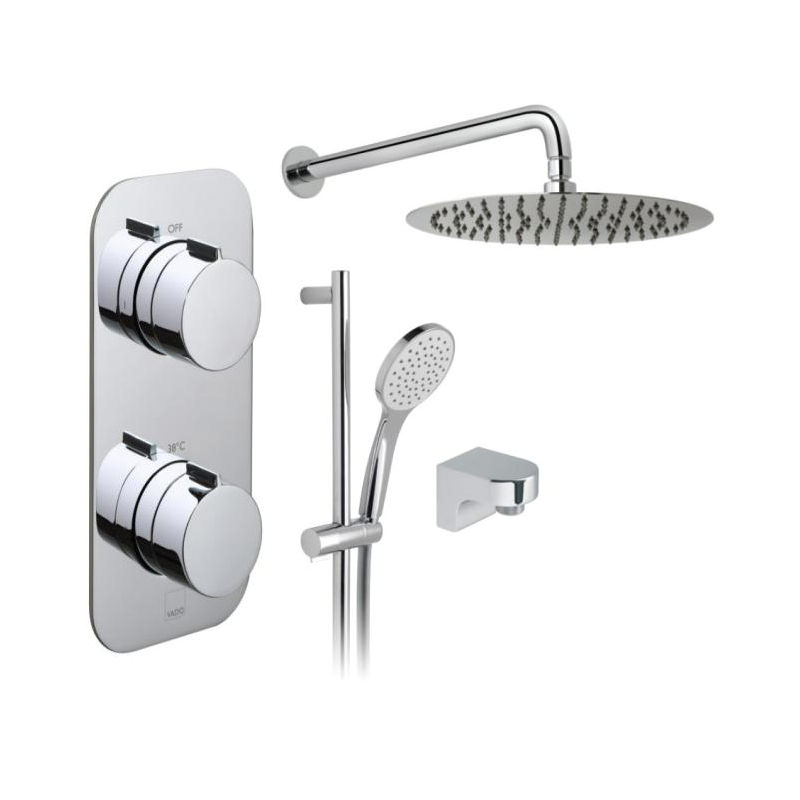

VADO ALTITUDE – 2 Outlet Thermostatic Shower Set

Description

• Chrome finish
• Wall mounted installation
• Manufacturing code of this product is TAB-1720/ALT-AS-CP
• Package Includes:
• Concealed thermostatic valve with ‘all-flow’ function – TAB-148/2-ALT-C/P
• Aquablade 300mm round slimline easy clean shower head and arm – AQB-RO/30/SA-C/P
• Atmosphere air-injected single-function slide rail kit – ATM-SFSRK/2-C/P
• Life Wall Outlet – LIF-OUTLET-C/P
• Minimum operating pressure required is 0.2 bar
• Suitable for low and high water pressure system
• 12 years of guarantee from the manufacturer
• Valve Specification:
• Concealed 2 outlet 2 handle thermostatic valve
• ‘All-flow’ function – delivers water to either outlet independently or all outlets simultaneously
• Luxury soft-turn handles
• Exceptional safety from temperature fluctuations
• Excellent flow rates, even at low pressure
• Comes with vertical rectangular backplate
• Size: Width 80mm x Height 170mm
• 2 x 3/4″ female inlets
• 2 x 3/4″ female outlets
• Includes fitting for 1/2″ and 3/4″ pipework

• Features thermostatic and diverter cartridge
• New polymer thermostatic cartridge that is resistant to limescale
• New diverter cartridge that is resistant to limescale build up and manages plumbing debris more effectively
• Supplied with mortar guard complete with markings to aid installation and tiling
• Flat back valve body allows for a solid, secure mount
• Handles have multiple fitting positions to allow perfect alignment of the handle and shroud
• 25mm fitting depth tolerance: 75 – 100mm [minimum – maximum]
• Can fit into a 50mm stud wall when using a optional studfast bracket [see option]
• Screw-on shrouds and slide-on plates ensure a rapid and simple second fix
• Easy-access isolation points
• Plate size allows for a 10mm tile cutting tolerance
• Optimum installation depth: 88mm for standard installation
• Slide Rail Kit Specification:
• Includes slide rail, single function air-injected handset and smoothflex anti-twist shower hose
• Size of rail: Height 900mm x Depth 66mm
• Size of Handset: Width 110mm x Height 251.5mm
• Length of hose: 1500mm [1.5 metre]
• Flow rate at 3 bar pressure: 14 l/min
• H₂Eco Flow Regulator Optional [See Option]

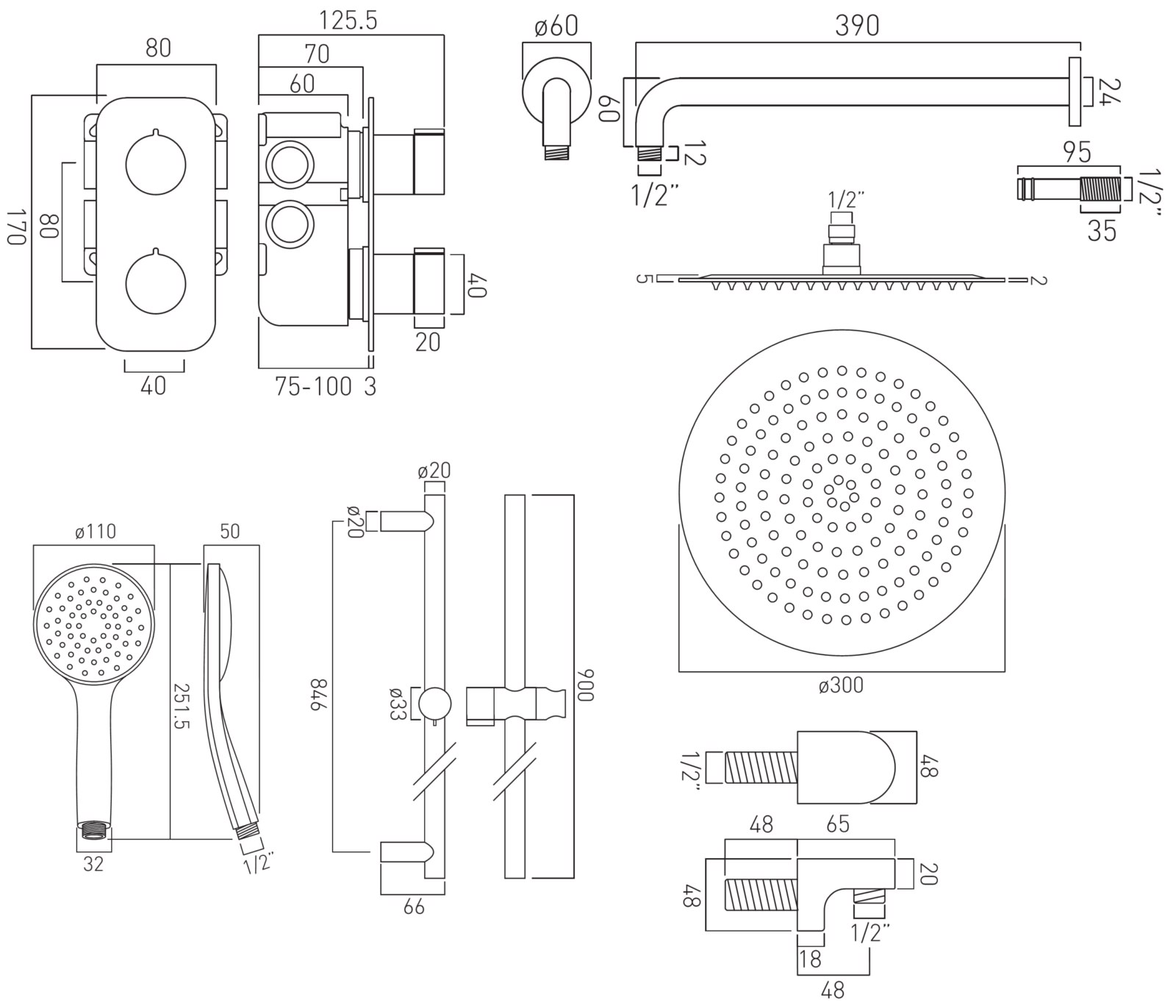

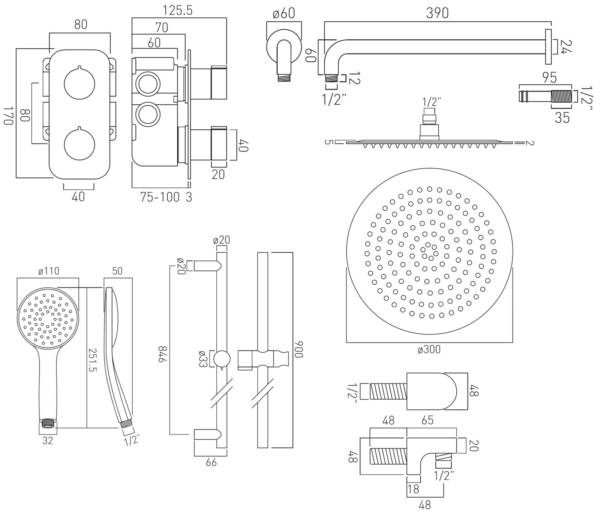

• For complete size details please refer technical drawing
